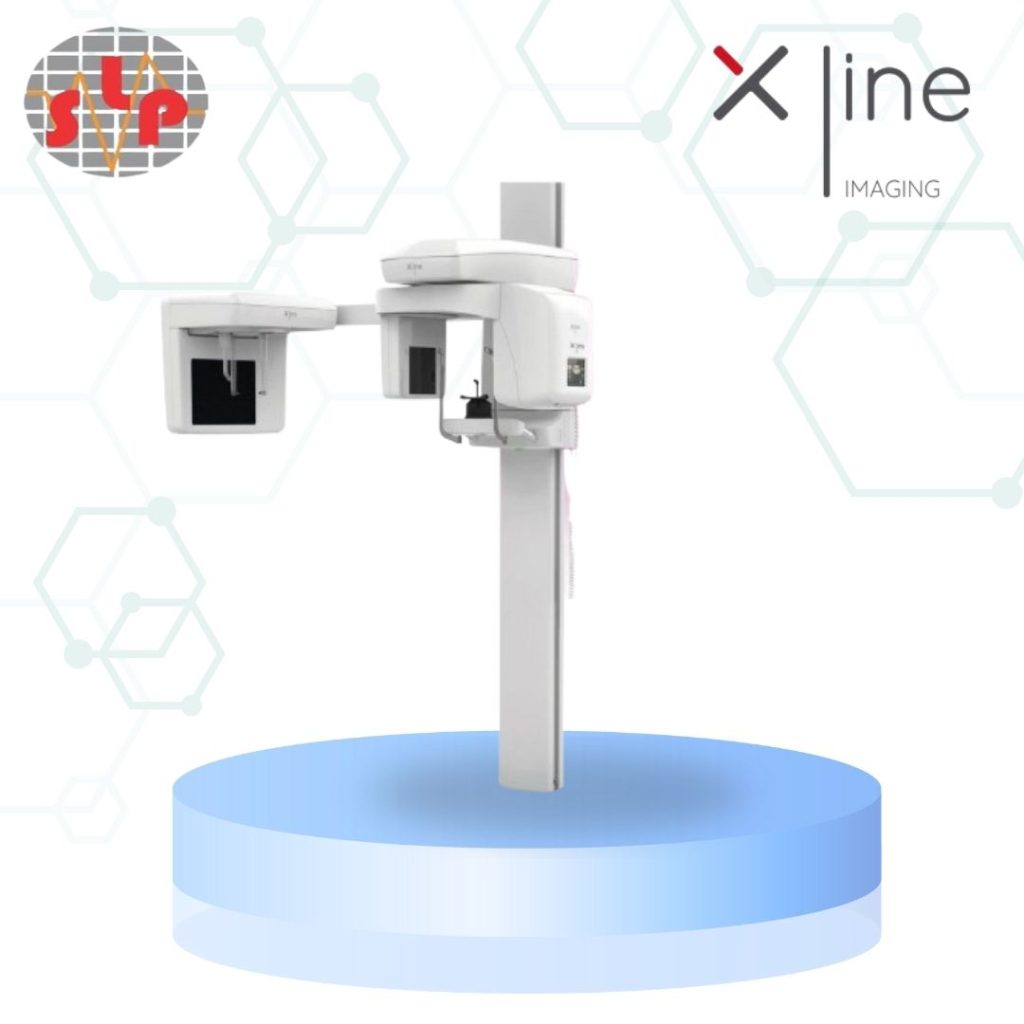

XDI 350
|
kV setting
|
60 to 86kV
|
mA setting
|
2.5, 3.2, 4, 5, 6.3, 8, 10 mA
|
mAs setting ceph
|
2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12, 16, 20, 25,
32, 40
|
Image Receptor Pan
|
|
Type
|
3D IGZO TFT
|
Active Area
|
16 cm x 16 cm
|
Effective pixel size
|
98 μm
|
Image Receptor Ceph
|
|
Type
|
CsI flat panel
|
Active Area
|
291 x 233 mm
|
Pixel size
|
76 μm
|
Dimensions & installation
|
|
Power supply
|
230 V ± 10%, 115 V ± 10%, 50/60 Hz
|
Weight
|
109 kg without ceph, 137 kg with ceph
|
Fixation
|
wall fixation and floor fixation with baseplate
|
Ergonomics
|
|
Patient position
|
Standing or sitting
|
Wheelchair Accessible
|
Yes
|
Positioning
|
against mirror, 3 aiming light beams, temporal support
|
Programs
|
|
3D programs
|
27 programs: adult full, child full, adult and child
upper and lower jaw, adult and child sinuses, surgical
and implant volume front, left and right, hemi-arc
left and right, upper and lower, ENDO volume in 6
different positions, TMJ right and left.
|
Volume size 3D
|
8 volumes: 5×6.5, 7×6.5, 6×10,
7×10, 8×6.5, 8×10, 11×6.5, 11×10 (in cm)
|
Voxel size
|
80 μm, 190 μm
|
Exposure time 3D
|
12.4 s (STD mode) | 16.1 s (HD mode)
|
Panoramic programs
|
9 programs: adult pano, child pano, dentition,
Panoramic bitewing, TMJ, sinuses, half dentition left,
half dentition right, anterior teeth.
|
Pixel size
|
98 µm
|
Exposure time 2D
|
4.6 – 14.2 s (STD mode) | 3.2 – 9.9 s (ECO mode)
|
Ceph programs
|
LL 30×24, LL 18×24, AP, PA, Carpus
|
Ceph image size
|
240×300 mm, 240×180 mm
|
Exposure time Ceph
|
0,5 for adults and 0,2 for children
|
Patient Size
|
4 sizes (small, medium, large and extra-large)
|
