The modern and flexible solution you’ve always dreamed of for your clinic.

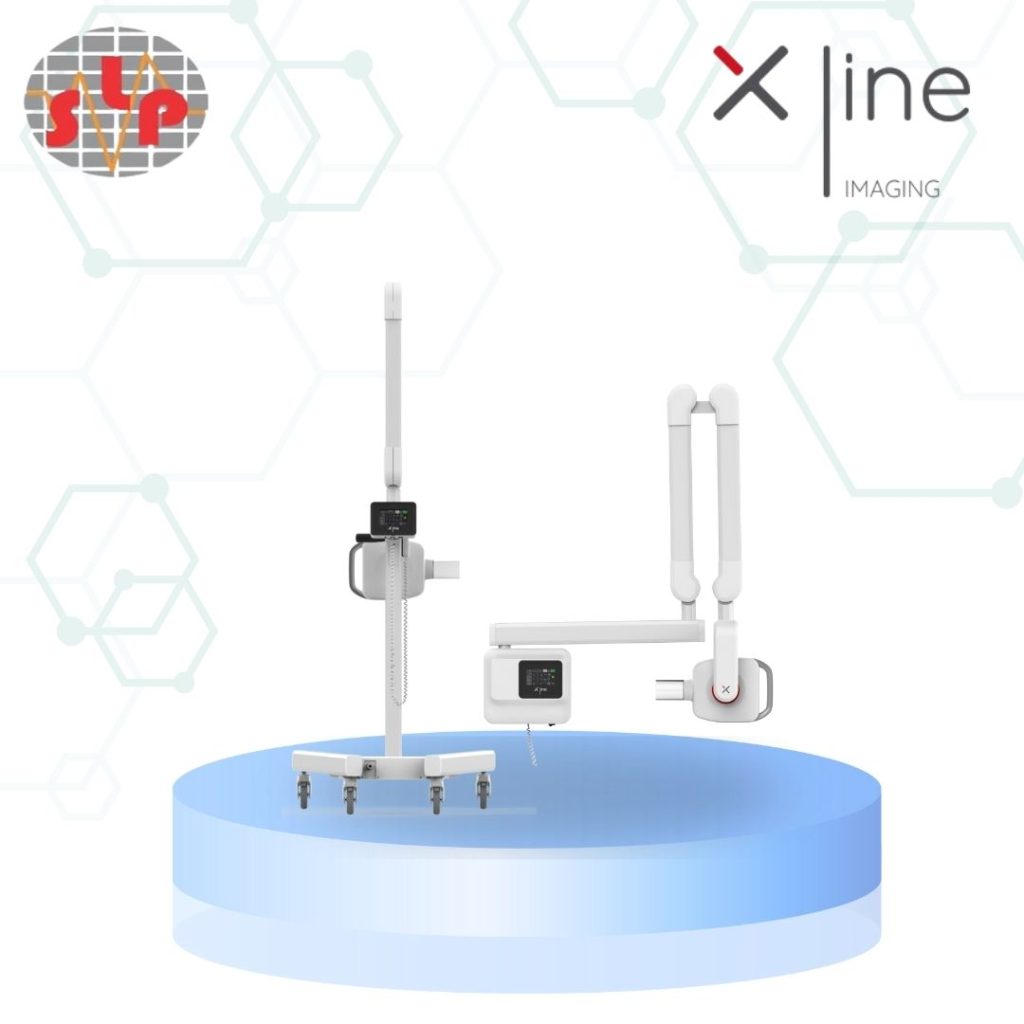

Thanks to the innovative layout concept, XDI-150 perfectly fits into your clinic: wall mounted, mobile or mobile with laptop tray are only three of the multiple possible solutions.
| Category | XDI 150 (Mobile) |
| Type / Configuration | High-Frequency DC Intraoral X-Ray, Mobile Stand |
| X-RAY TUBE | OX70-4 Skan-X |
| Anode Material | Tungsten |
| Focal Spot | 0.4 (IEC 60336:2006) |
| Tube Voltage & Current | 60 / 65 / 70 kV selectable, 7 mA fixed |
| Focal Spot | 0.4 mm |
| Exposure Time | 0.01 – 3.2 s |
| Frequency HV generator | 70 kHz |
| Collimator (BLD) | 3×4 cm |
| Focus–Skin Distance (SSD) | 20 cm (standard) / 30 cm (optional) |

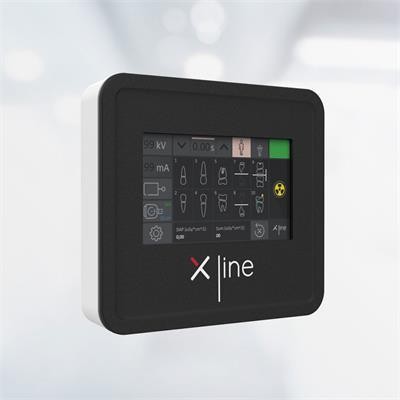

| Control Panel | Panel touchscreen |
| Exposure factor | Set in s [0.01-3.2] or mAs [0.071-22.4] |
| Exposure factor settings | Automatic with selection of tooth type and patient size or with manual selection, for use with film, phosphor plate or digital sensor |
| X-ray ON | . Remote switch with cable extendable to 3 m . Button on the control unit display |
| X-ray indication | Yellow light on the remote switch, illustration on the control panel display and buzzer |
| Power Supply | 120–230 V ±10%, 840 W @70 kV -7 mA |
| Line Frequency | 50 – 60 Hz |
| Width mobile stand base | 71 cm |
| Length mobile stand base | 92.5 cm |
| Overall height | 193 cm |
| Weight | Mobile Stand Base 31 kg |
