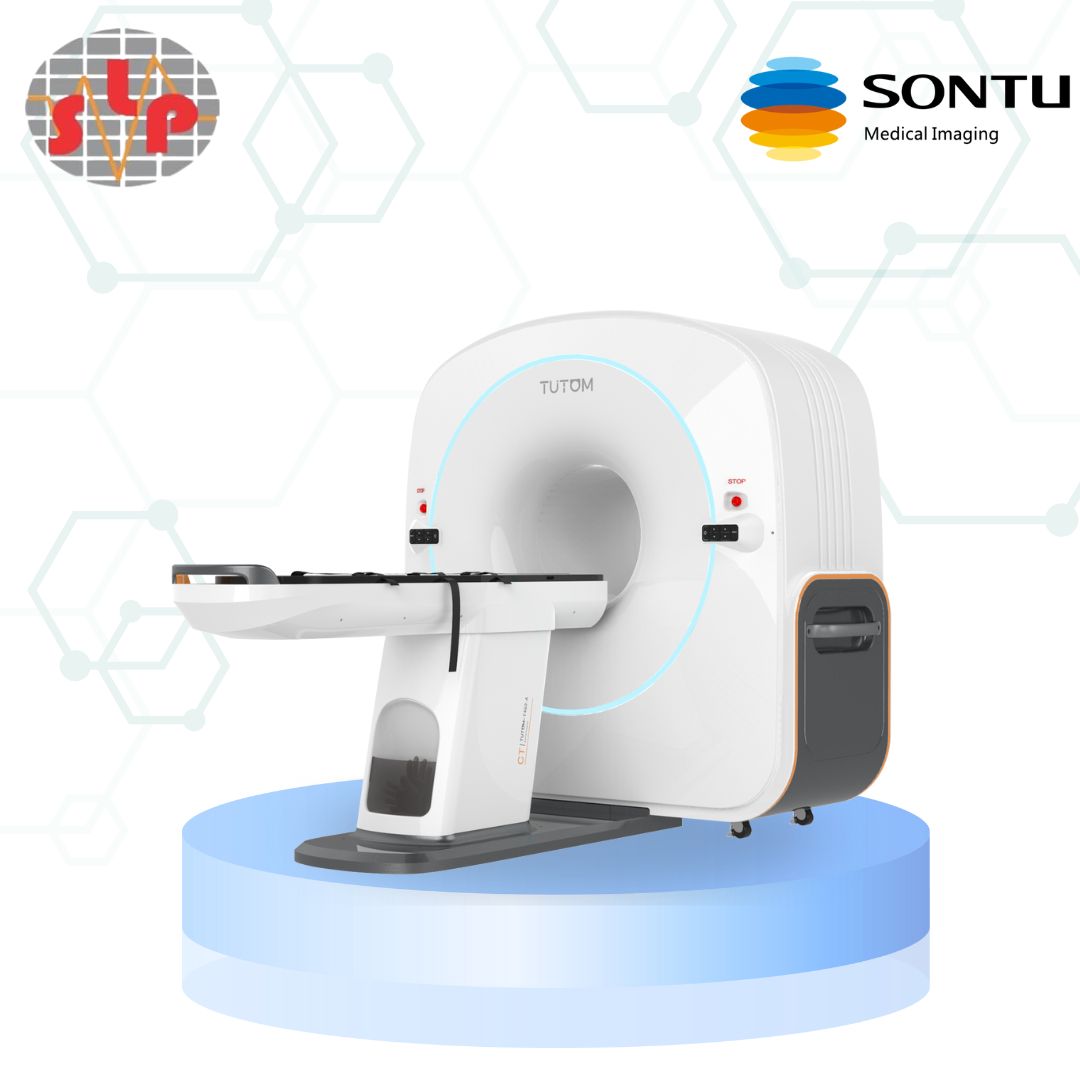

SONTU Veterinary Cone-beam CT is an innovative small-to-medium animal imaging system developed independently by SONTU. It offers rapid 3D imaging through a single rotation, smart operations, advanced clinical functions and minimal radiation exposure. This cutting-edge equipment is ideally suited for capturing high-quality 3D images of bone tissue, and can also image soft tissue, making it an invaluable tool for veterinarians.
Technical Spesification :
Category |
Spesification Sontu |
X-ray Source |
Rotating anode |
FOV |
17cm×20cm |
Tube Voltage |
50-125 kV |
Tube Current |
Radiography: 10mA~160mA; |
Fluoroscopy: 2mA～16mA |
|
Focal Spot |
0.3mm、0.6mm |
Weight Bearing of Bed |
<50kg |
Pixel Pitch |
120μm |
Scan Duration |
19s |
Reconstruction Time |
40s |
Weight |
260kg |
Scan Mode |
360°rotational scanning |
Power Supply |
220VAC±10%, 50HZ/60HZ |
Slice Thickness |
0.24mm |
