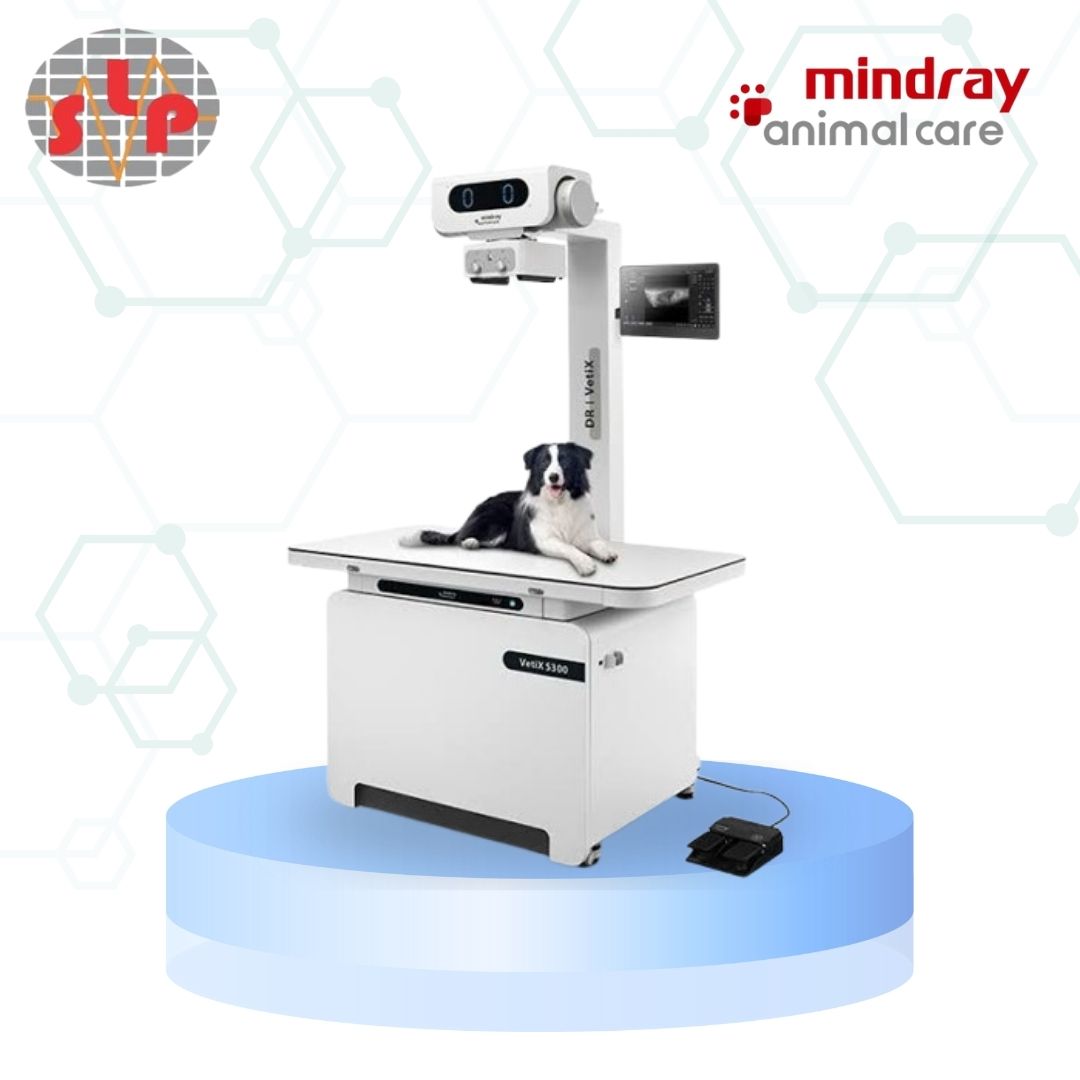

The VetiX S300 introduces innovation in High Quality, Professional Expertise, and User-Friendly Operation. Equipped with advanced functions like iShotHelper for precise positioning and iVocal for voice-controlled exposure, this device is tailored for veterinarians with features like iEast for effortless on/off control and iSolo for single-operator workflow, significantly boosting work efficiency
Category |
Spesifikasi |
X Ray Generator : |
|
Generator Type |
Ultra High Frequency |
Power Output Rating: |
32 kW |
Current Output |
max 500 mA |
Radiographic Condition Range: |
mAs Range / Timer Range: 0.1 – 125 mAs |
kV selection: 40 – 125 kV in increments of 1 kV |
|
Power Distribution |
100 – 240 V AC |
X Ray Tube |
|
Tube voltage |
Max. 125 kV |
Anode heat content |
100 kJ (140 kHU) |
Nominal Focal spot value |
Dual Focus 1.0/2.0 |
X-Ray Table |
|
Patients limits |
80 Kg |
Table top length |
150 cm |
Table top width |
65 cm |
Table top type |
Floating – 4 way table-top |
Table top movement |
(Horizontal: 200 mm), (Longitudinal: 100 mm) |
Brakes |
Electromagnetic |
Collimator |
|
Intrinsic Filtration |
≥1.3mmAl/75 kV |
Light field indicator |
LED |
Nominal Focal spot value |
Dual Focus 1.0/2.0 |
Flat Panel Detector |
|
Scintillator |
CSI |
Typical value of effective dimension |
43 ×43 cm |
Pixel spacing |
140 μm |
Pixel matrix |
3072 ×3072pixels |
Spatial resolution |
≥3.6lp/mm |
Protection class |
IP54 |
